4PACT

Keypoints:

  • - Wide range
  • - Quick and smooth
  • - Two shafts
  • - No limit to wall thickness
  • - Handy and versatile



4PACT is a pipe bevelling machine for bevelling pipes and tubes with inside diameters of 23 mm to 108 mm. The main advantage of the 4PACT is its considerably wide range in its class, therefore it can be used for pipes with various diameters.

This beveller is locked in the pipe by means of three locking jaws; the machine is capable of performing an inside bevel, outside bevel and facing simultaneously, quickly and smoothly. Bevelling angles are changed by using different blades; we can supply blades of virtually any shape (compound bevels, J-bevels, counter boring etc.).

4PACT is a handy and versatile beveller with a flattened body width of only 80 mm. The machine is ideal for bevelling pipes with diameters between 2” and 4” with no limit to the wall thickness (multiple passes may be required). 4PACT is similar to the RAX machine except for the fact that the 4PACT comes with two shafts instead of one. This machine is available with either a pneumatic or electric drive.

Technical data

Locking range 23 - 108 mm
Axial feed 40 mm
Idle speed 70 rpm
Torque 140 Nm
Weight 9 kg
Compressed air pressure 6 bar
Compressed air consumption 1 600 l/min
Compressed air quality filtered and lubricated
Hose connection 3/4“
Noise level 75 dB
Locking range 23 - 108 mm
Axial feed 40 mm
Motor power 800 W
Motor speed 70 rpm
Torque 143 Nm
Voltage 240 V / 50 Hz
Weight 10 kg
Noise level 75 dB
pneumatic version
electric version
Do you have a question about this product?

Product images:

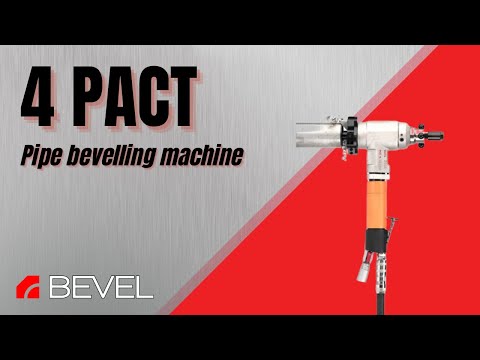

Product videos:
