ULTRAMILL ROTO

Keypoints:

  • - Top and bottom bevels – no plate flipping
  • - Hardox, Duplex and other hard alloys
  • - Plate thickness 6–120 mm
  • - Any angle 0°–90°, also J-bevel
  • - Automatic feed and speed control

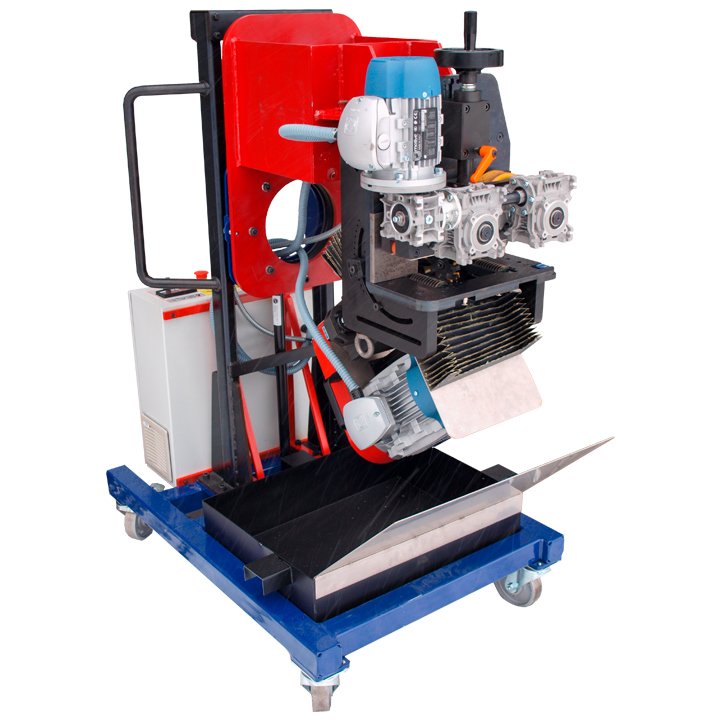

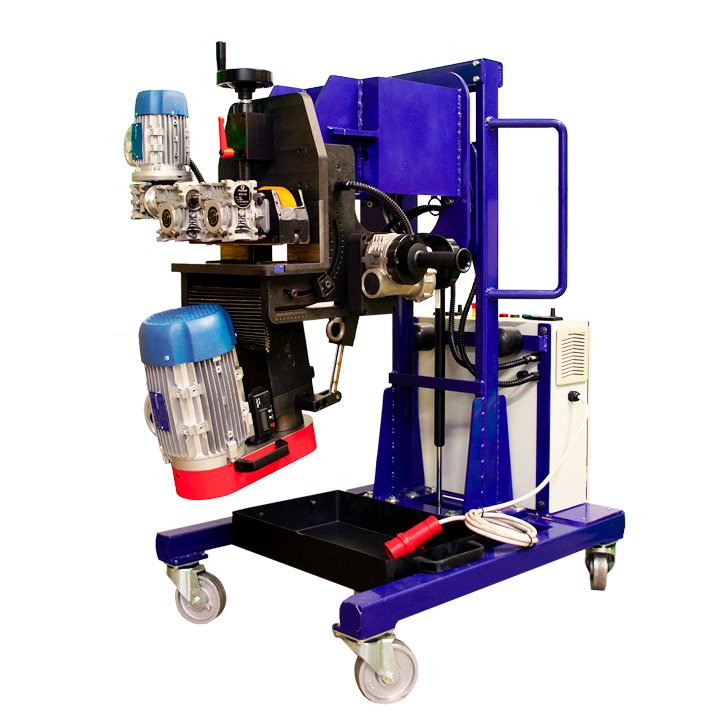

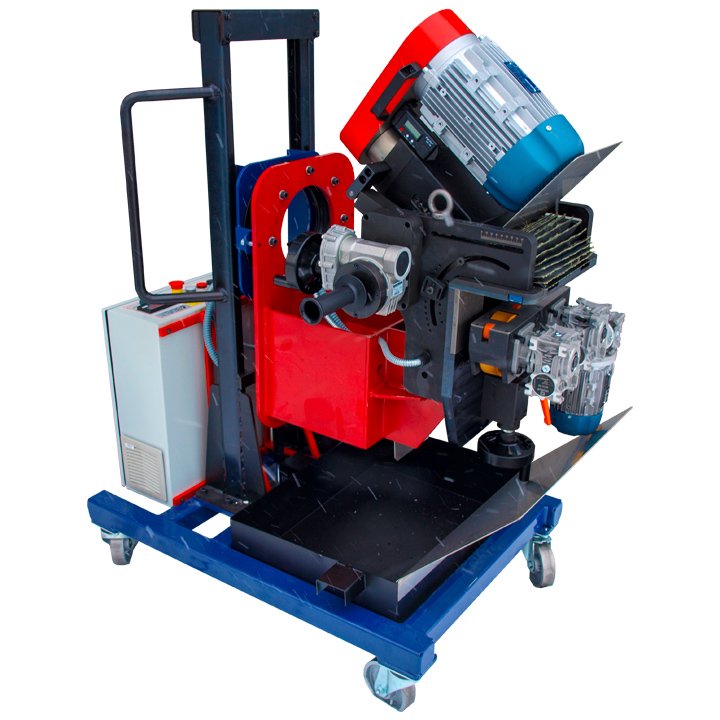

ULTRAMILL ROTO is a heavy-duty self-propelled plate bevelling machine for weld prep on jobs where the plate needs a bevel on both sides. The whole milling unit rotates, so you can switch from the top to the bottom edge and prepare X and K welds without lifting or turning the plate – a big time saver on heavy parts.

The milling head has nine carbide inserts and cuts not only standard steels but also very hard materials such as Hardox, Weldox, Duplex, Inconel and titanium. It handles plates from 6 to 120 mm thick with bevels up to 80 mm wide, and the angle is set anywhere between 0° and 90° simply by tilting the milling unit.

Weld preparation it can do

  • V, X, K and J bevels on straight edges
  • Facing and milling off surface layers, e.g. clad removal
  • Larger-radius curves, including concave shapes
  • 30° chamfered edges

Easy to run

Two driven wheels move the machine along the plate at an adjustable speed, and the cutter speed is adjustable too. Gas struts keep the machine on the plate surface, so the bevel stays even along the whole edge. A sensor stops the cutter at the end of the plate, and everything is controlled from one control panel.

Weld prep results you can weld straight away

ULTRAMILL ROTO – Compound bevel

Compound bevel

ULTRAMILL ROTO – K bevel – top and bottom

K bevel – top and bottom

ULTRAMILL ROTO – 90° edge / facing

90° edge / facing

ULTRAMILL ROTO – Bevelling Hardox

Bevelling Hardox

ULTRAMILL ROTO – Finished bevel on Hardox

Finished bevel on Hardox

ULTRAMILL ROTO – ULTRAMILL ROTO at work

ULTRAMILL ROTO at work

Optional accessories

  • Portable table with ball track
  • Roller supports
  • Magnetic chip collector

See how ULTRAMILL ROTO handled Hardox 450 and 500 in our Hardox bevelling case study, or watch the machine on our ULTRAMILL ROTO page.

REQUEST A QUOTEPRODUCT SHEET (PDF)

Technical data

Maximum bevel width 80 mm
Bevelling angle 0° – 90°
"J" bevelling angle 0° – 30°
Plate thickness 6 – 120 mm
Bevelling speed 0 – 1.5 m/min
Motor power 4 000 W
Motor idle speed 300 – 1 500 rpm
Voltage 400 V / 50 Hz, 3-phase
Tooling 80 mm milling head with 9 replaceable inserts
Machine weight 340 kg
electric version
