Litering

Home > Cut & bevel > Litering

Keypoints:

- Cuts and bevels
- Compensate ovality
- Hard materials
- Aluminium body
- Light weight

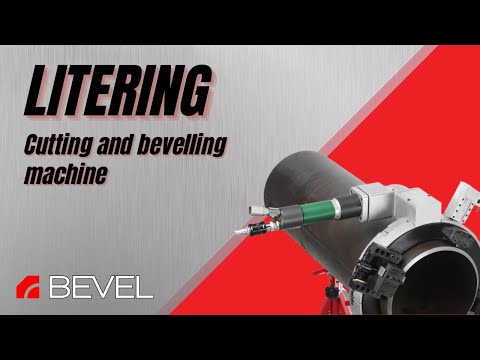

CUTBEV LITERING is a light weight cutting and bevelling machine. CUTBEV machines are locked from the outside; LITERING can bevel pipes with an outside diameter from 23 mm up to 937 mm (multiple frames need to be used). CUTBEV LITERING pipe cutter and beveller can be used in open-air sites, on pipelines and mainly inside factory halls.

The main advantage of LITERING is its light weight; cutting and bevelling can be done simultaneously up to 25 mm of wall thickness. The driving units and tool-holders are interchangeable between different split-ring frame (also called clamshell) sizes. LITERING can also be fitted with optional dancer spring system tool-holders to compensate for pipes with ovality. LITERING is available with an electric, pneumatic and hydraulic drive (some exceptions for certain sizes may apply).

Technical data

	_^P-CLAP ^01-03	_^P-CLAP ^02-06	_^P-CLAP ^03-08	_^P-CLAP ^06-12	_^P-CLAP ^10-16	_^P-CLAP ^14-20	_^P-CLAP ^18-24	_^P-CLAP ^24-30	_^P-CLAP ^30-36
^{Range OD (inches)}	^1”-3.5”	^2”-6”	^3”-8”	^6”-12”	^10”-16”	^14”-20”	^18”-24”	^24”-30”	^30”-36”
^{Motor power (w)}	⁵²⁰	⁹⁹⁰	^{1 340}	^{1 340}	^{2 240}	^{2 240}	^{2 240}	^{2 240}	^{2 240}
^{Air consumption (lt./min)}	⁹⁵⁰	^{1 600}	^{1 800}	^{1 800}	^{3 000}	^{3 000}	^{3 000}	^{3 000}	^{3 000}
^{Air working pressure (bar)}	⁶	⁶	⁶	⁶	⁶	⁶	⁶	⁶	⁶
^{Tool box stroke (mm)}	³⁰	⁴⁰	⁵⁰	⁶⁰	⁶⁰	⁶⁰	⁶⁰	⁶⁰	⁶⁰
^{Radial feed rate per revolution (mm)}	^0.1	^0.1	^0.1	^0.1	^0.1	^0.1	^0.1	^0.1	^0.1
^{Weight (kg)}	¹⁸	²²	²⁶	⁴⁴	⁵⁷	⁶⁹	⁷⁴	⁷⁹	⁹⁴
^{Idle speed (rpm)}	⁴⁸	³⁷	³⁰	²²	¹⁶	¹³	¹³	¹³	¹³

	^H-CLAP ^10-16	^H-CLAP ^14-20	^H-CLAP ^18-24	^H-CLAP ^24-30	^H-CLAP ^30-36
^{Range OD (inches)}	^10”-16”	^14”-20”	^18”-24”	^24”-30”	^30”-36”
^{Motor power} ^(w)	^{6 260}	^{6 260}	^{6 260}	^{6 260}	^{6 260}
^{Oil working pressure} ^(bar)	^100-120	^100-120	^100-120	^100-120	^100-120
^{Oil flow rate} ^(lt./min)	^40.0	^40.0	^40.0	^40.0	^40.0
^{Tool box stroke} ^(mm)	⁶⁰	⁶⁰	⁶⁰	⁶⁰	⁶⁰
^{Radial feed rate per} ^{revolution (mm)}	^0.1	^0.1	^0.1	^0.1	^0.1
^Weight ^(kg)	⁵⁷	⁶⁹	⁷⁴	⁷⁹	⁹⁴
^{Idle speed} ^(rpm)	¹⁶	¹³	¹³	¹³	¹³

	^E-CLAP ^01-03	^E-CLAP ^02-06	^E-CLAP ^03-08	^E-CLAP ^06-12
^{Range OD} ^(inches)	^1”-3.5”	^2”-6”	^3”-8”	^6”-12”
^{Motor power} ^(w)	⁷⁵⁰	^{1 020}	^{1 020}	^{1 020}
^Voltage ^(V)	^110/240	^110/240	^110/240	^110/240
^Frequency ^(Hz)	⁵⁰	⁵⁰	⁵⁰	⁵⁰
^{Tool box stroke} ^(mm)	³⁰	⁴⁰	⁵⁰	⁶⁰
^{Radial feed rate per} ^{revolution (mm)}	^0.1	^0.1	^0.1	^0.1
^Weight ^(kg)	¹⁸	²²	²⁶	⁴⁴
^{Idle speed} ^(rpm)	⁴⁸	³⁷	³⁰	²²
