Solidring

Keypoints:

  • - Big range
  • - Cuts and bevels
  • - Compensate ovality
  • - Solid steel body
  • - Can bevel any material

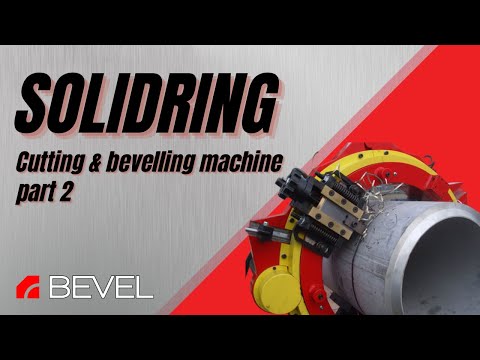

CUTBEV SOLIDRING is a pipe cutting and bevelling machine locked from the outside, capable of cutting and bevelling pipes made of virtually any material. SOLIDRING can bevel pipes with an outside diameter from 160 mm to 1590 mm (multiple frames required)! SOLIDRING can cut pipes with virtually unlimited wall thickness.

This machine can be fitted in open-air sites, on pipelines or used inside factory halls, or can be used for ocean engineering. Cutting and bevelling can be done simultaneously up to 25 mm of wall thickness. The driving units and tool-holders are interchangeable between different split-ring frame (also called clamshells) sizes.

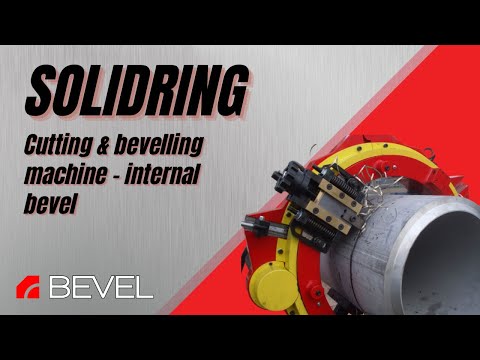

Internal bevelling, as well as counter boring, can be done with optional attachment. SOLIDRING comes with dancer spring system tool-holders which can compensate for pipe ovality. SOLIDRING is a very powerful machine used in cases where other pipe bevellers cannot do the job required. SOLIDRING can be supplied with either a pneumatic or hydraulic drive.



Technical data

  P-WYDE
06–12
P-WYDE
12–18
P-WYDE
18–24
P-WYDE
24–30
P-WYDE
30–36
P-WYDE
36–42
P-WYDE
42–48
P-WYDE
48–54
P-WYDE
54–60

 Range OD
 (inches)

6”–12” 12”–18” 18”–24” 24”-30” 30”-36” 36”-42” 42”-48” 48”-54” 54”-60”

 Motor power
 (w)

2 240 2 240 2 240 2 240 2 240 2 240 2 240 2 240 2 240

 Air consumption
 (lt./min)

3 000 3 000 3 000 3 000 3 000 3 000 3 000 3 000 3 000

 Air working pressure
 (bar)

6 6 6 6 6 6 6 6 6

 Tool box stroke
 (mm)

60 60 60 60 60 60 60 60 60

 Radial feed rate
 per revolution (mm)

0.1 0.1 0.1 0.1 0.1 0.1 0.1 0.1 0.1

 Weight
 (kg)

143 175 225 270 336 366 410 466 515

 Idle speed
 (rpm)

26 21 17 14 12 10 9 8 7
  H-WYDE
06–12
H-WYDE
12–18
H-WYDE
18–24
H-WYDE
24–30
H-WYDE
30–36
H-WYDE
36–42
H-WYDE
42–48
H-WYDE
48–54
H-WYDE
54–60

 Range OD
 (inches)

6”–12” 12”–18” 18”–24” 24”-30” 30”-36” 36”-42” 42”-48” 48”-54” 54”-60”

 Motor power
 (w)

11 185 11 185 11 185 11 185 11 185 11 185 11 185 11 185 11 185

 Oil working
 pressure
(bar)

100-120 100-120 100-120 100-120 100-120 100-120 100-120 100-120 100-120

 Oil flow rate
 (lt./min)

40.0 40.0 40.0 40.0 40.0 40.0 40.0 40.0 40.0

 Tool box stroke
 (mm)

60 60 60 60 60 60 60 60 60

 Radial feed rate
 per revolution (mm)

0.2 0.2 0.2 0.2 0.2 0.2 0.2 0.2 0.2

 Weight
 (kg)

143 175 225 270 336 366 410 466 515

 Idle speed
 (rpm)

26 21 17 14 12 10 9 8 7
pneumatic version
hydraulic version
