SHAVEDGER

Keypoints:

  • - Powerful
  • - Wide range
  • - Various materials
  • - Bevels smoothly
  • - Usually single pass



SHAVEDGER is the most powerful hand-held pipe bevelling machine. The beveller is able to perform bevels on heavy wall tubes smoothly. Usually the bevel is done in a single pass (depending on the bevel size and material hardness, sometimes two passes may be needed). SHAVEDGER has four slots for blades and these can be fitted with various numbers and types of blades.

The machine will also make bevel of virtually any shape depending on the blade. Its gleason gear pinion system and reinforced shafts make it an ideal beveller for thick walled tubes in the diameter range between 2” - 8” on various materials.

This machine is locked to the pipe from the inside by three locking jaws and is capable of performing an inside bevel, outside bevel and facing simultaneously, quickly and smoothly. The locking diameter is 49 - 203 mm. This machine is available with an electric and pneumatic drive. SHAVEDGER can be also fitted with a pneumatic auto-locking device.



Technical data

Locking range 49 – 203 mm
Axial feed 40 mm
Motor power 1 350 W
Idle speed 52 rpm
Torque 250 Nm
Weight 24 kg
Compressed air pressure 6 bar
Compressed air consumption 1 800 l/min
Compressed air quality filtered and lubricated
Locking range 49 – 203 mm
Head diameter 220 mm
Axial feed 40 mm
Motor power 1 020 W
Idle speed 34 rpm
Torque 264 Nm
Voltage 110 V/240 V, 50 Hz
Weight 25 kg
Noise level 75 dB
pneumatic version
electric version
Do you have a question about this product?

Product images:

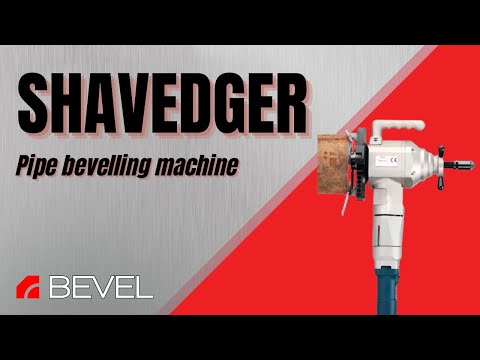

Product videos:
